Adapter UGREEN PCIe 3.0 x4 to M.2 NVME / 70503

Adapter UGREEN PCIe 3.0 x4 to M.2 NVME

Descriotion:

Widely Compatibility: UGREEN M.2 PCIe NVME SSD adapter card supports M Key 2280 2260 2242 2230 PCIe NVMe M.2 solid-state drives up to 4TB, such as 950Pro, 960EVO, XP941, PM951, PM961, SM951, SM961, Plextor M6e Series, Kingston HyperX Predator M.2 SSD and so on. Note: support M key M.2 PCI Express 4x SSD only, does not support M.2 SATA NGFF

Incredible 32Gbps Transmission Rate: This PCIe M.2 Card adapter conforms to PCIe 3.0 standard, which can achieve a 32Gbps data transmission rate from M.2 PCIe NVME SSD to your computer, greatly improving work efficiency

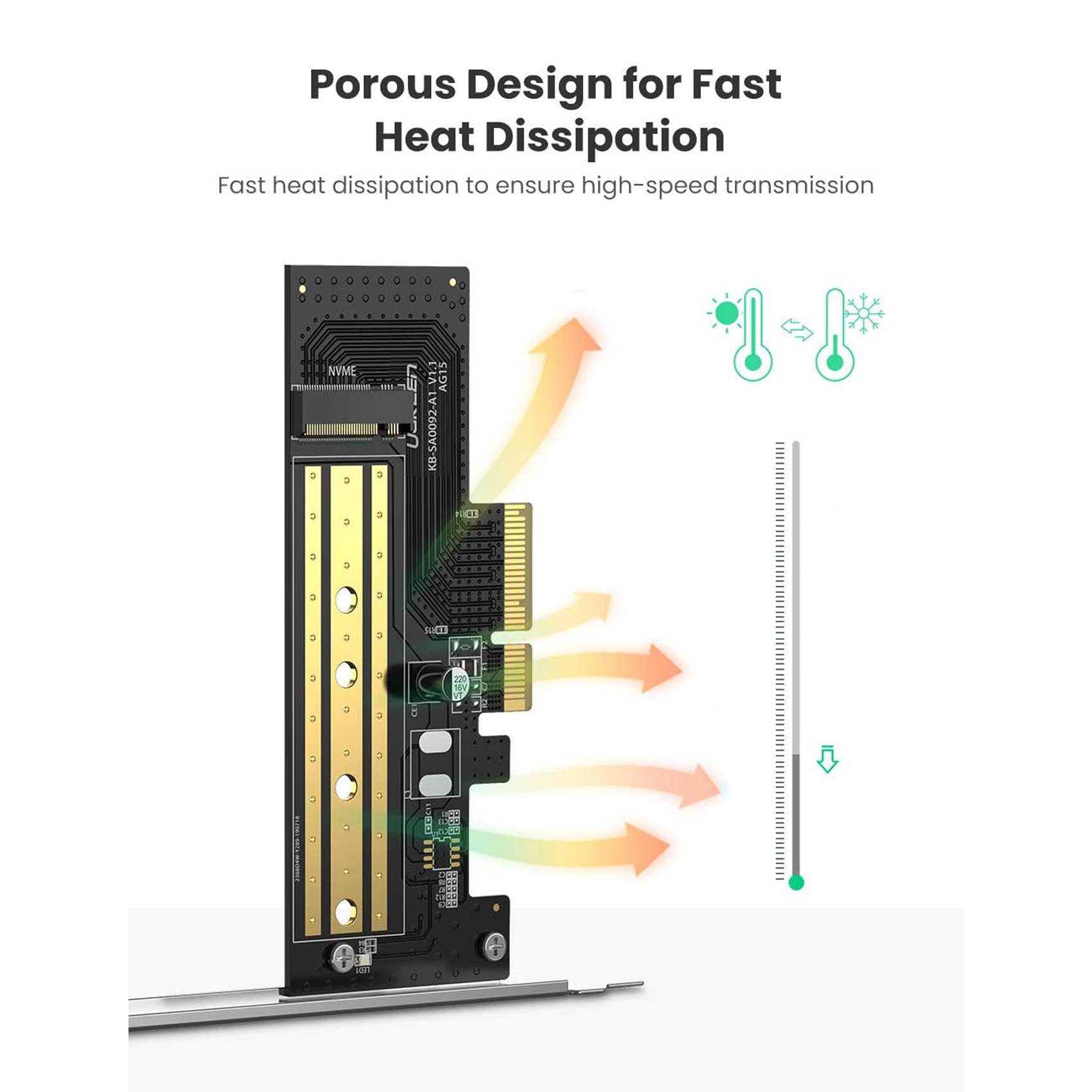

Better Heat Dismission: The porous design can help fast heat dissipation, and greatly improve the stability and safety of the data transmission

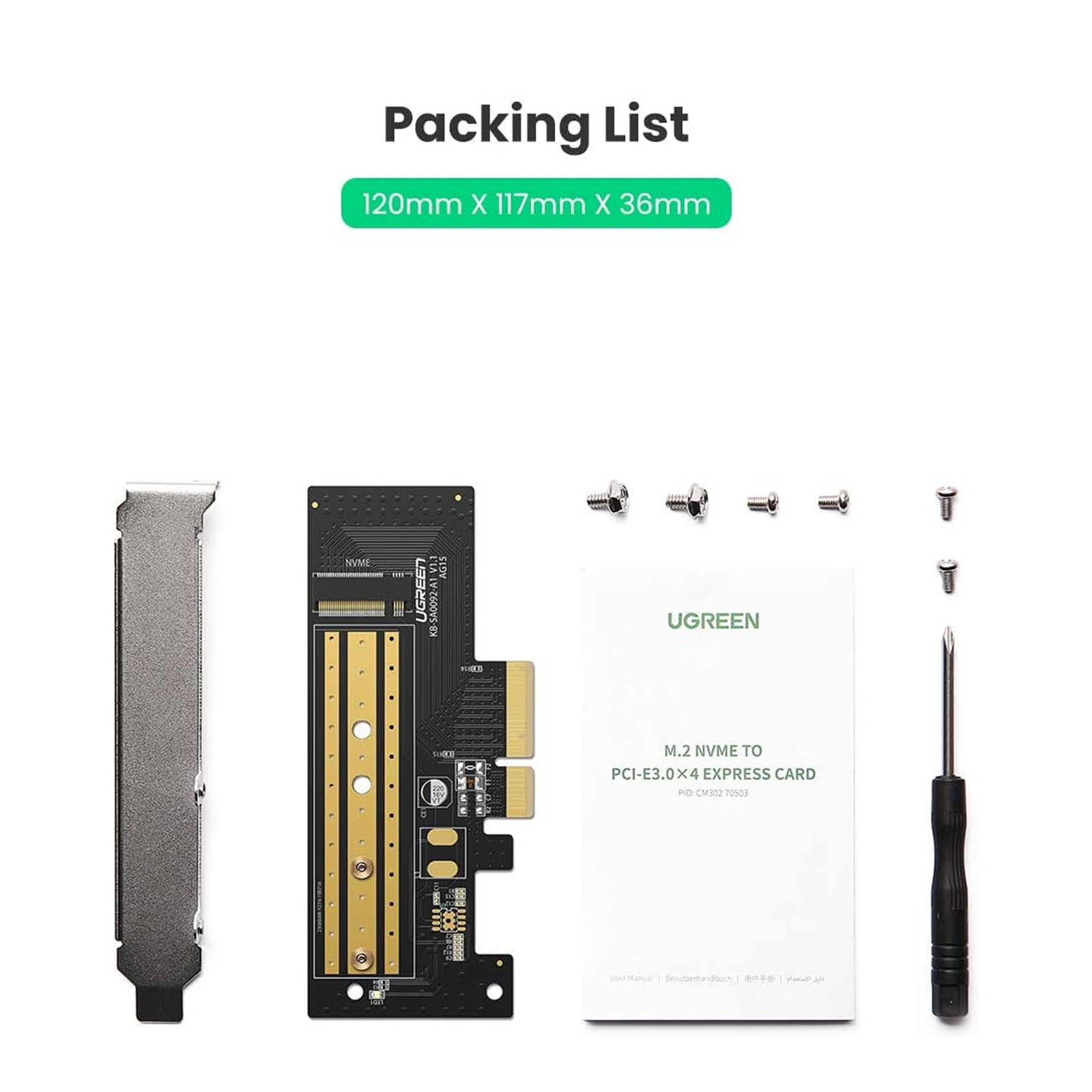

Easy to Installation: UGREEN M.2 PCIe NVME adapter comes with 1 screwdriver, 4 SSD fixing screws, and 2 expansion card fixing screws, which can very convenient for installing your M.2 PCIe NVME SSD to this adapter, and installing this adapter to your computer. The screwdriver greatly increased portability

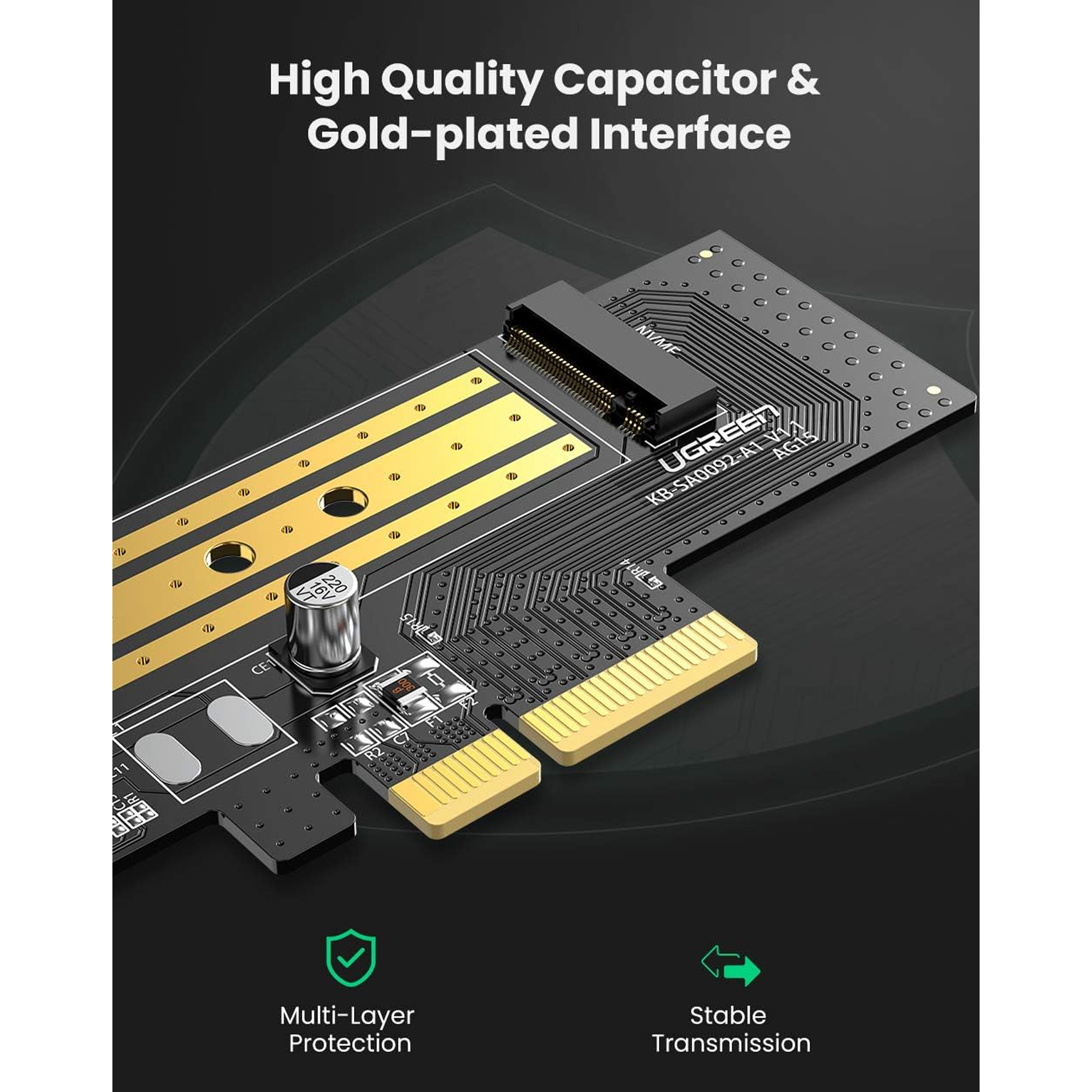

Enhanced Durability: This M.2 PCIe adapter card is built with a premium gold-plated panel for resistance to corrosion and keeping a long lifespan

32Gbps High-Speed transmission

This M.2 to PCIe NVME card supports an amazing data transmission rate up to 32Gbps, which is faster enough to transfer 1GB files in 1 second.

Compatibility

This M.2 NVME adapter card can support M-Key PCIe NVMe SSD, support the SSD size of 2280 2260 2242 2230, support PCIe 3.0 X4 /X8/X16 connector. Important Note: This card adapter does not support M.2 SATA NGFF, Only support M key M.2 PCI Express 4x SSD.

Support Systerm: Windows, Mac OS, Linux

Compatible with the devices as follows (Include but not limited the following devices)

Samsung 970 EVO Plus/ 970 EVO/970 Pro/960 EVO/950 PRO/PM981/SM961/ PM951

WD Black SN750, Crucial P1 1TB, HP EX900

Toshiba RC100/XG5/XG6, ADATA XPG SX8000, CORSAIR

Intel Optane 800P/760P, MP300/MP510

Plextor M9Pe/M8Pe

Kingston A1000

Pioneer APS-SE10G-512

Sandisk Extreme PRO m.2.

Note: Not support M.2 SATA NGFF.

Specification

Support Connector: M-Key

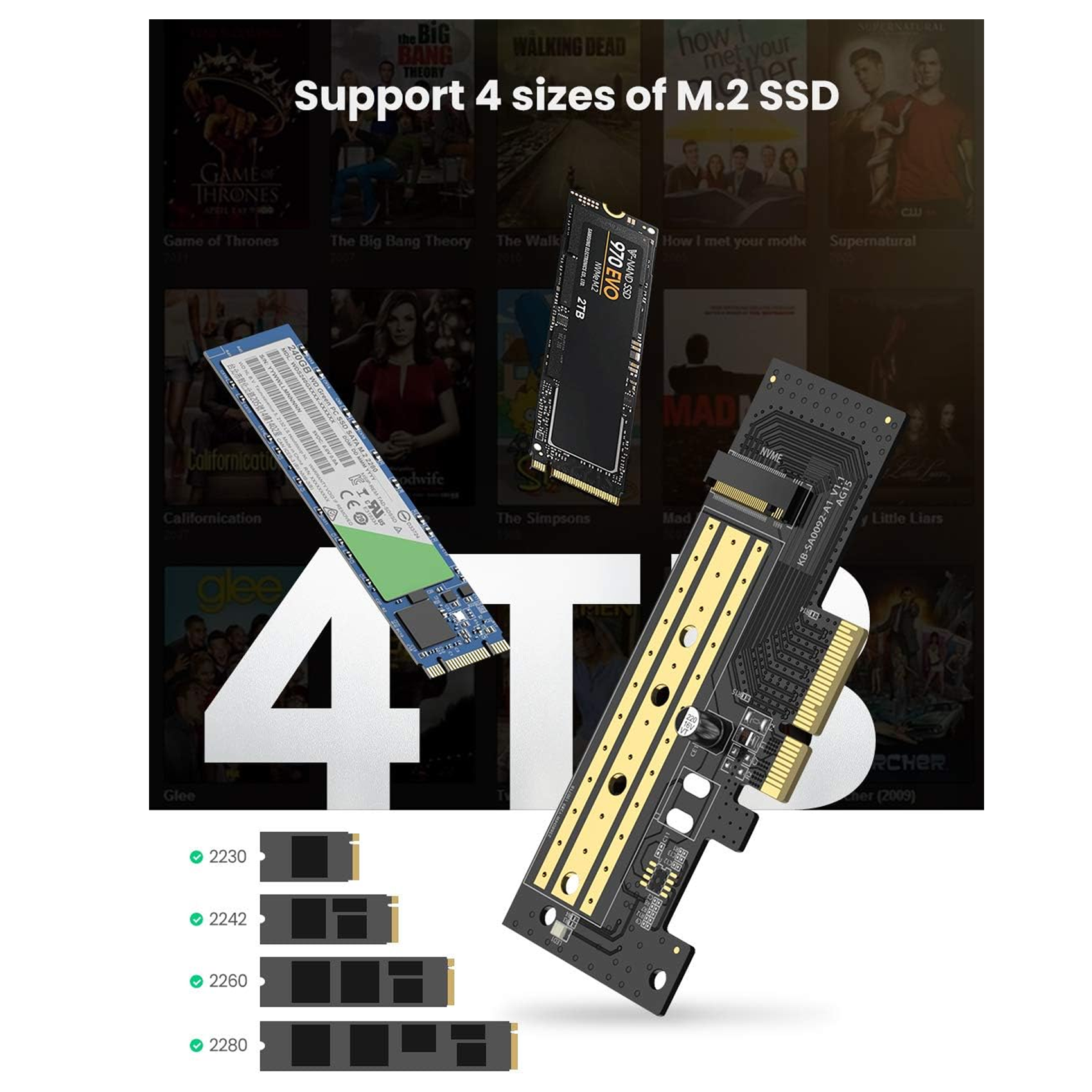

Support SSD Size: 2280/2260/2242/2230

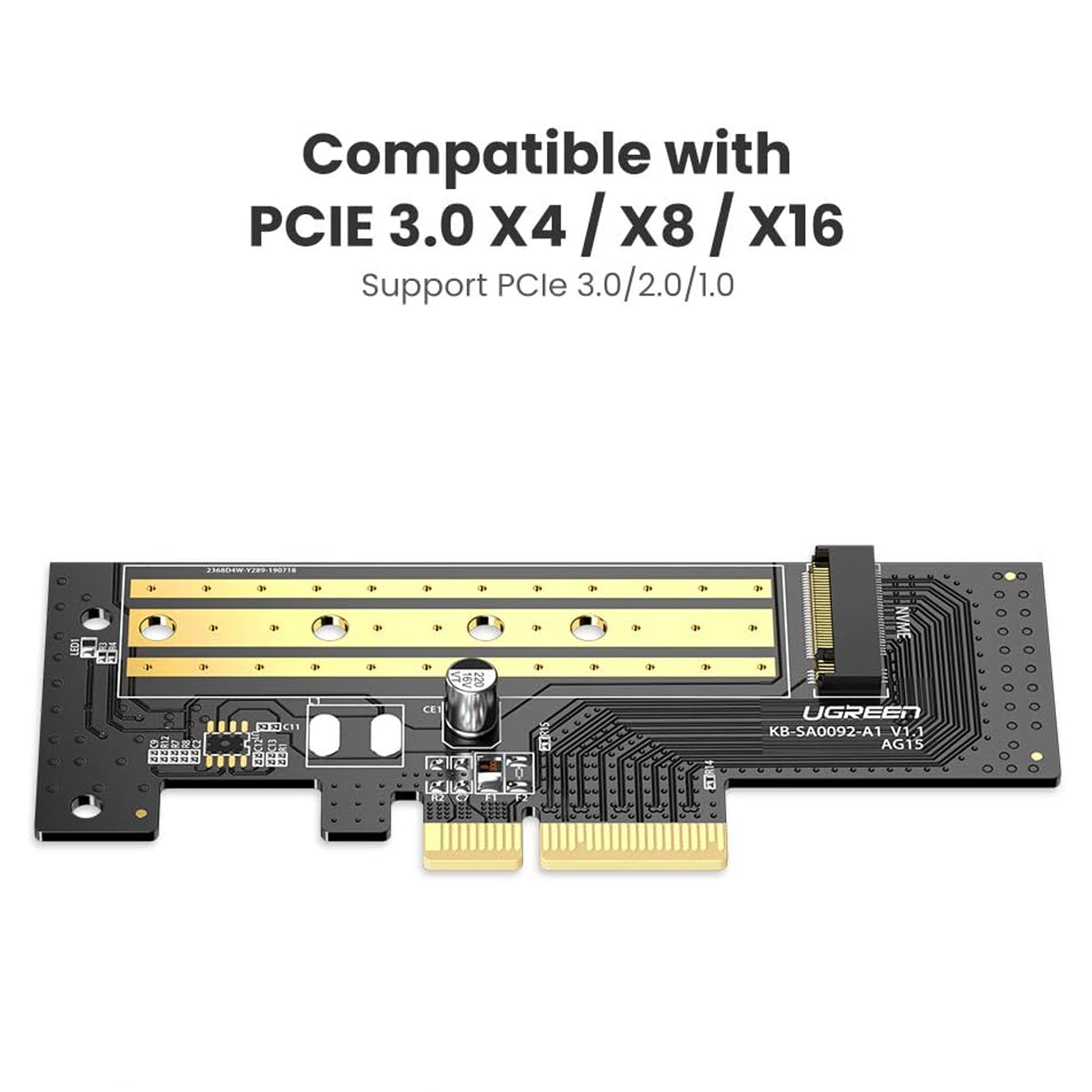

Support PCIe Type: PCIe 3.0 X4 /X8/X16

Support Max. Capacity: 4TB

Supports PCIe 1.0 ,PCIe 2.0 and PCIe 3.0 motherboard.

Driver Free

Support S.M.A.R.T , TRIM function

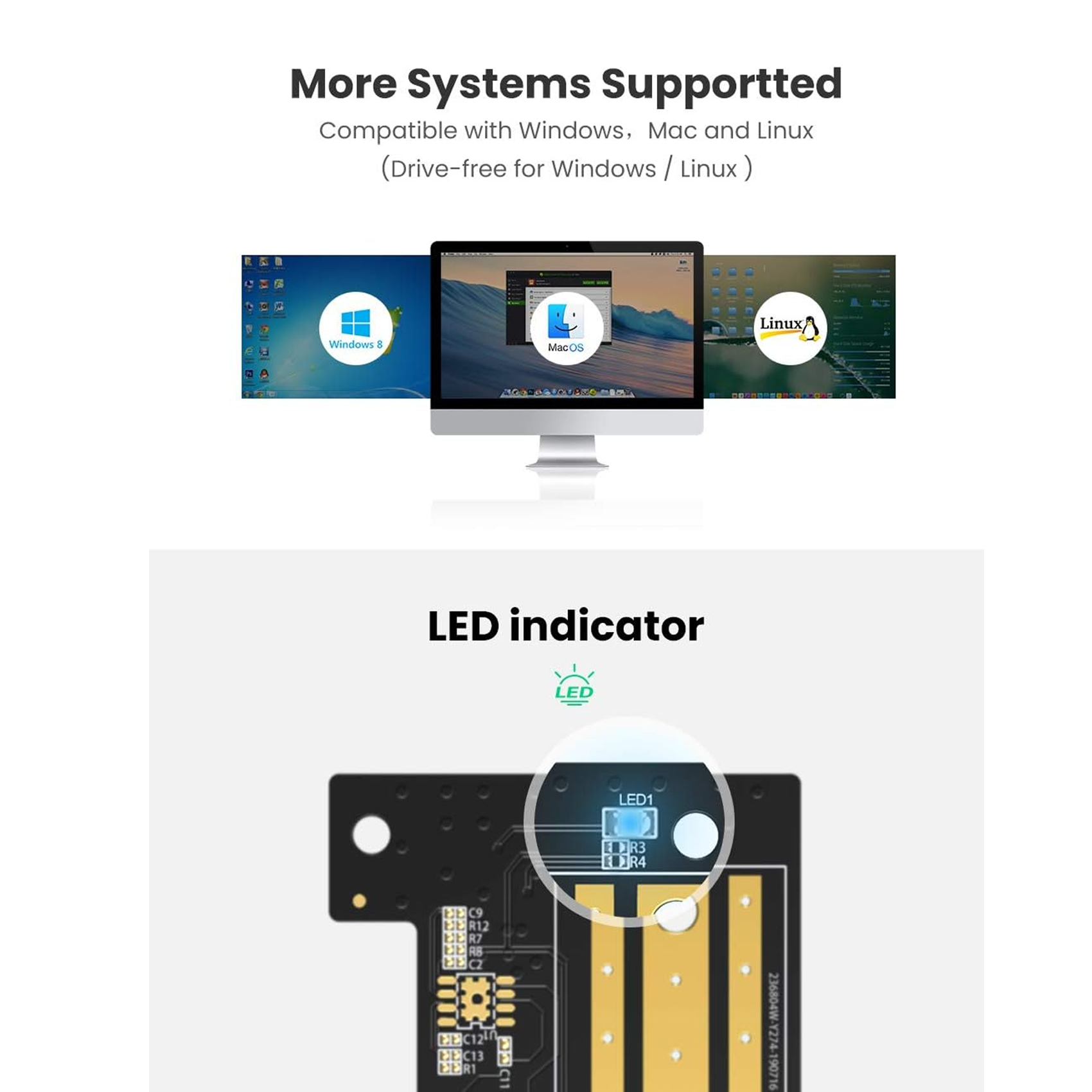

LED Indicator: When the Blue LED indicator light, it means the product is powered, when the LED indicator is flash, it means the product is transmitting the data.

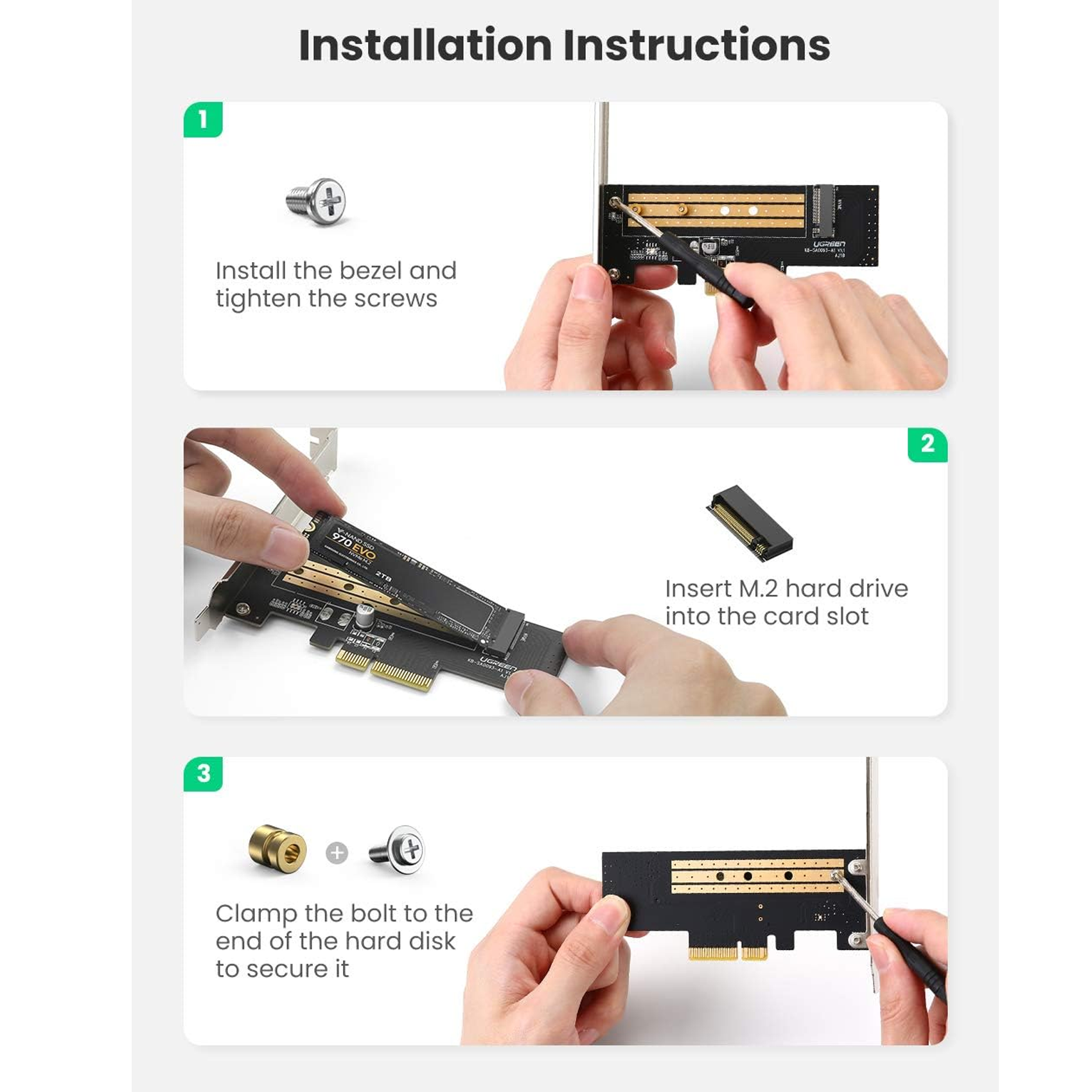

Troubleshooting Tips: If this adapter can't work with your computer, please check your M.2 SSD whether installed to this adapter correctly. Here is the step:

1,Istall the bezel and tighten the screws.

2, Insert M.2 SSD into the card slot.

3. Clamp the bolt to the end of the hard disk to secure it.

Boost the performance of your computer. The UGREEN CM302 adapter allows you to use M.2 SSDs on devices with PCIe 3.0 slots. Enjoy fast transfers of up to 32Gbps, play dynamic games without interruption and forget about system crashes. The product stands out for its wide compatibility and has an LED indicator. You will also find in the kit the tools necessary to install the adapter.

Speed up your computer

Do you feel that your computer does not work efficiently enough? Now you can change that! With the help of the UGREEN adapter you will be able to install high-speed M.2 SSD without any problems, thanks to which you will be able to achieve, among other things, transfer rates of up to 32Gbps - that means that 1GB of files can be transferred in just about 7 seconds! You'll also be able to launch games faster. You will also be able to use software such as Photoshop comfortably - say goodbye to unexpected system crashes!

Broad compatibility

Don't worry about compatibility problems. You can easily connect the adapter to PCIe 3.0 / 2.0 / 1.0 x4, x8, and x16 slots. The product is also compatible with SSDs in different sizes - 2230, 2242, 2260 and 2280 - and features compatibility with M and B&M keys, as well as NVMe PCIe protocol. It works perfectly with Windows, Linux and Mac OS (Windows and Linux do not require driver installation).

Safe and efficient operation

Enjoy safe operation and unparalleled performance. The adapter has been designed to dissipate heat quickly and efficiently. So it will not overheat. It also has a high-quality capacitor, a gold-plated interface, and a multi-stage protection system. All this ensures stable transmission and stands out for its impressively long service life.

User-friendly

The adapter is easy to install. All the necessary tools are included, so you don't have to worry about missing anything. In the package you will find, among others, a Phillips screwdriver, screws and a bracket. With their help you can easily mount the device. The adapter has also LED indicator which will provide you with information about its status.
