5MP Night Colored Video Doorbell Camera | Tapo D235
5MP Night Colored Video Doorbell Camera | Tapo D235
Couldn't load pickup availability
Tapo D235 | Tapo Video Doorbell Camera
Description:

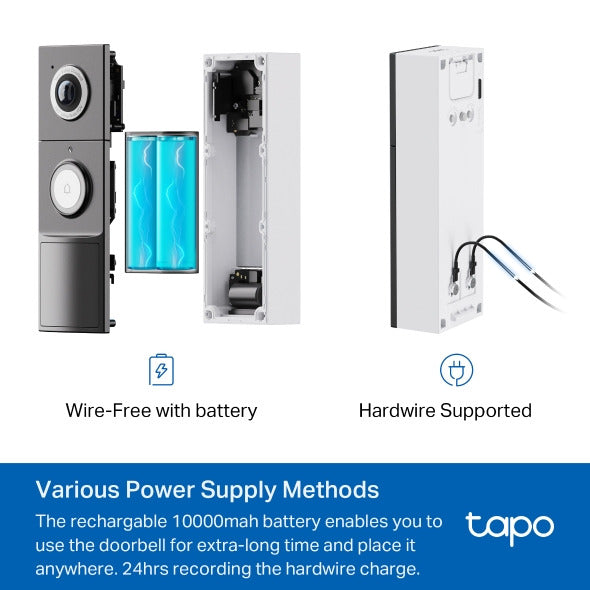

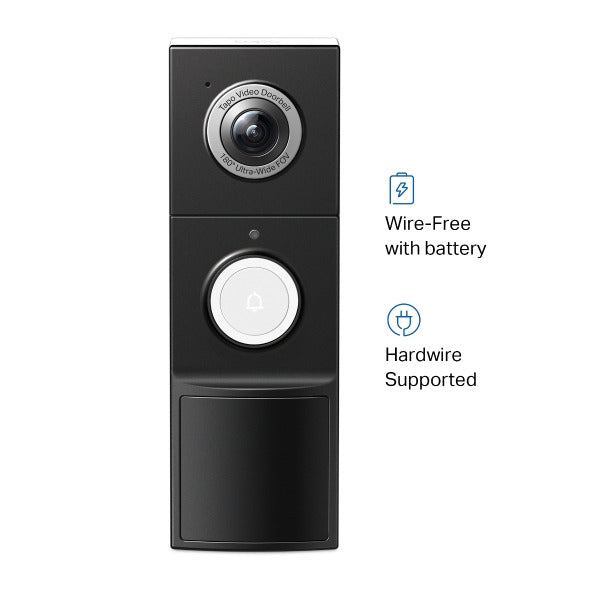

210-Day Battery or Wired: Offers flexibility with a long-lasting 10000mAh battery or wired setup, including pre-roll capabilities when hardwired.
2K 5MP Clarity: Delivers high-resolution images for detailed and clear visual security.
180° Ultra-Wide View: Provides a comprehensive view, capturing full-body images from head-to-toe.
Full Color Night Vision with Spotlight: Ensures enhanced visibility and security in low
light conditions.
Free Detection and Notification: Includes alerts for person, vehicle, pet, and package detections.
Two-Way Audio: Features premium audio capabilities for clear communication.
Quick Response: Enables rapid responses to detected events and alerts.
IP66 Weatherproof: Designed to withstand adverse weather conditions, ensuring durability and reliability.
Local and Cloud Storage: Supports microSD storage (up to 512GB) and cloud services for versatile data management.
Specification:
Camera
| Image Sensor | 1/2.7“ Progressive Scan CMOS Sensor |
|---|---|
| Lens | Focal Length: 1.18mm Aperture: F1.8 Field of View: 170.6° (Horizontal), 140.1° (Vertical) |
| Night Vision | 850 nm IR LED (33 ft / 10 m) Full-Color Night Vision |
| Lighting | Built-in Spotlights |
| Interface & Button |
1× RESET /SYNC Button |
Video & Audio
| Maximum Resolution | 2K 5MP (2560 × 1920px) |
|---|---|
| Frame Rate | 15/20 fps |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3DNR WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 98dB (Level measured at 4-inch/10-cm distance) |
Storage
| Local Storage | MicroSD Card Slot (Up to 512 GB) |
|---|---|
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
Detection and Notifications
| Sensor | Single PIR Motion Sensor (FOV: 130° horizontal) One Ambient Light Sensor |
|---|---|
| AI Detection | Motion Detection Person Detection Pet Detection Vehicle Detection Package Detection |
| Activity Zones | Yes *Only works with Motion Detection. |
| Output Notification | System Notification System Notification with Snapshot (Tapo Care Services) |
Network
| Network Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
|---|
Security
| Security | On-Device Machine Learning 128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK |
|---|
Power
| Power Source | 10000 mAh Built-in Rechargeable Lithium-ion Battery Hardwire charge Hardwire supply |
|---|---|
| Input Voltage | Doorbell Battery Pack Adapter Input: 100-240 V, 50/60 Hz |
| Output Voltage | Doorbell Battery Pack Adapter Output: 5.0 V, 2.0 A |
General
| Smart Integration | Google Assistant, Amazon Alexa |
|---|---|
| Weather Resistance | IP66 |
| System Requirements | Tapo App: iOS 12.0 or higher, Andriod 4.4 or higher |
| Mounting Options | Stick to a Wall Mount to a Wall |
| Operating Temperature | -20℃~45℃ |
| Storage Temperature | -40℃~60℃ |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 0~90% RH, Non-condensing |
| Charging Temperature | 0-45℃ |
Package Size
| Dimensions | Doorbell Dimensions: 2.13 × 1.97 × 1.52 in (150 × 50 × 38.4 mm) Chime Dimensions: US/JP Version: 2.87×1.85×1.71 in (73×46.9×43.5 mm) EU Version: 2.87 × 2.15 × 1.89 in (73×54.6×48 mm) UK Version: 2.87×2.45×1.71 in (73×62.3×43.5 mm) KR Version: 2.87×2.46×1.71 in (73×62.4×43.5mm) AU Version: 2.87×2.01×1.71 in (73×51×43.5 mm) |
|---|
Certifications
| Certifications | CE, RoHS, RCM,R-NZ,FCC, EAC, Triman, UKCA |
|---|
In The Box
Tapo Video Doorbell × 1

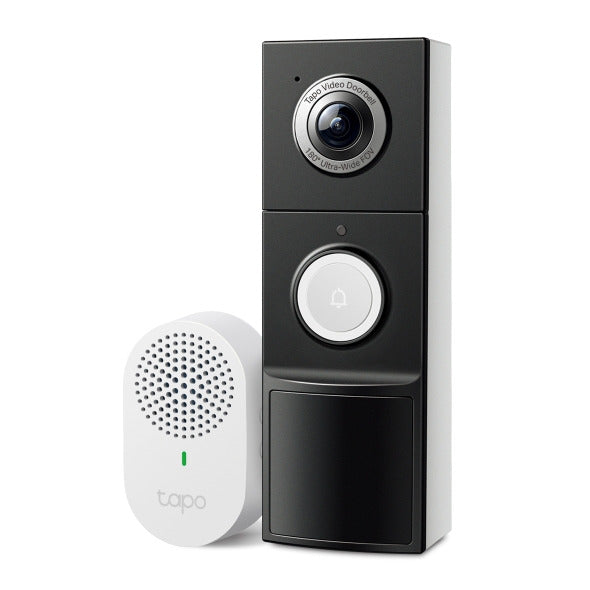

Tapo Chime × 1
Mounting Template × 1
Mounting Bracket × 1
Vertical Mounting Wedge× 1
Horizontal Mounting Wedge × 1
USB Adapter Cable × 1
Jumper for Existing Chime × 1
Extension Wires × 2
Mounting Screws and Anchors × 3
Hardwire Installation Screws × 2
Doorbell Detaching Pin × 1
Mounting Wedge Screws × 5
3M Adhesive × 1
Foam Pad × 1
Wire Nuts × 2
Quick Start Guide
