Sonoff Zigbee Bridge Ultra (ZBBridge-U) – Matter-Compatible Zigbee 3.0 Smart Hub with Ethernet & Wi-Fi

The Sonoff Zigbee Bridge Ultra (ZBBridge-U) is a high-performance smart home hub designed to seamlessly integrate your Zigbee 3.0 devices into the Matter ecosystem. Equipped with a 1.5GHz dual-core processor, 1GB DDR4 RAM, and 8GB eMMC storage, it ensures smooth and reliable automation for your smart home setup.

With support for up to 256 Zigbee sub-devices, the ZBBridge-U offers extensive connectivity options, including both Wi-Fi and Ethernet (RJ45) interfaces. Its Turbo Mode extends Zigbee communication range up to 200 meters in open environments, enhancing signal stability and coverage.

The hub integrates effortlessly with voice assistants like Alexa, Google Home, and Apple Home, allowing for hands-free control of your devices. Additionally, it features smart scene capabilities and can function as an alarm hub, triggered via NFC, wireless buttons, or app controls.

📦 What’s in the Box:

1x Sonoff Zigbee Bridge Ultra (ZBBridge-U)

1x USB Type-C Power Cable

1x RJ45 Ethernet Cable

1x User Manual

📐 Key Specifications:

Model: ZBBridge-U

Processor: Rockchip RV1109 Dual-Core 1.5GHz

Memory: 1GB DDR4 RAM

Storage: 8GB eMMC

Wireless Protocols: Zigbee 3.0, Wi-Fi IEEE 802.11b/g/n 2.4GHz

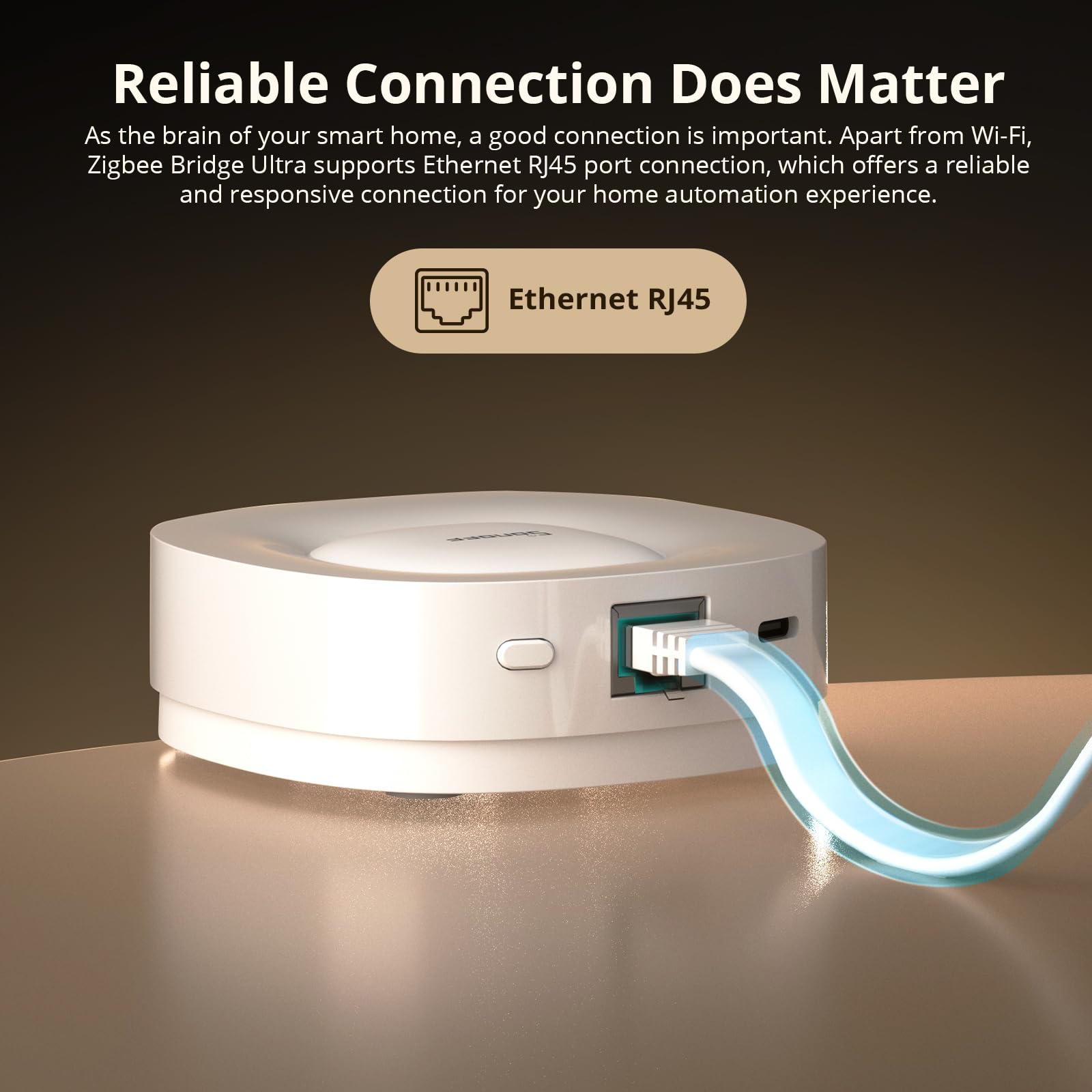

Wired Connectivity: RJ45 Ethernet Port (10/100Mbps)

Power Supply: 5V DC 1A via USB Type-C

Operating Temperature: -10°C to 40°C

Humidity: 5%-95% RH, non-condensing

Casing Material: PC+ABS

Certifications: CE, FCC, RoHS

📌 Key Features:

Extensive Device Support: Connect up to 256 SONOFF Zigbee sub-devices for comprehensive smart home control.

Dual Connectivity: Offers both Wi-Fi and Ethernet connections for stable and responsive performance.

Matter Integration: Acts as a Matter bridge, enabling Zigbee devices to work with Alexa, Google Home, Apple Home, and SmartThings.

Enhanced Range: Turbo Mode extends Zigbee communication up to 200 meters in open environments.

Voice Control: Compatible with Siri, Alexa, and Google Home for hands-free operation.

Smart Scenes: Easily set up custom scenes for personalized automation.

Alarm Functionality: Can serve as an alarm hub, triggered via NFC, wireless buttons, or app controls.

📌 Common Use Cases:

Smart Home Automation: Control and automate lights, switches, sensors, and more.

Security Monitoring: Receive alerts and notifications for door/window sensors and motion detectors.

Voice-Activated Control: Manage devices using voice commands through compatible assistants.

Extended Coverage: Utilize Turbo Mode for larger homes or areas requiring extended Zigbee range.
