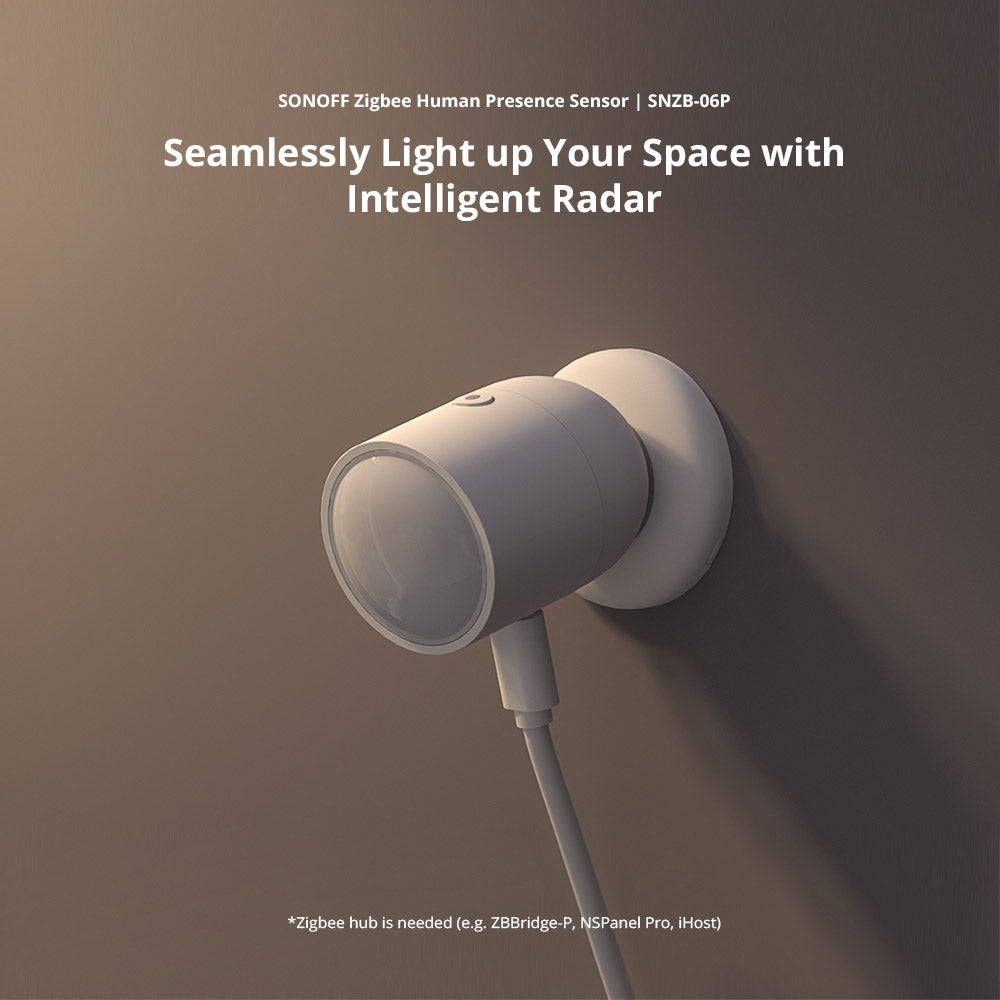

Sonoff SNZB-06P Zigbee Human Presence Sensor – Advanced mm Wave Detection with Light Sensing and 4m Range

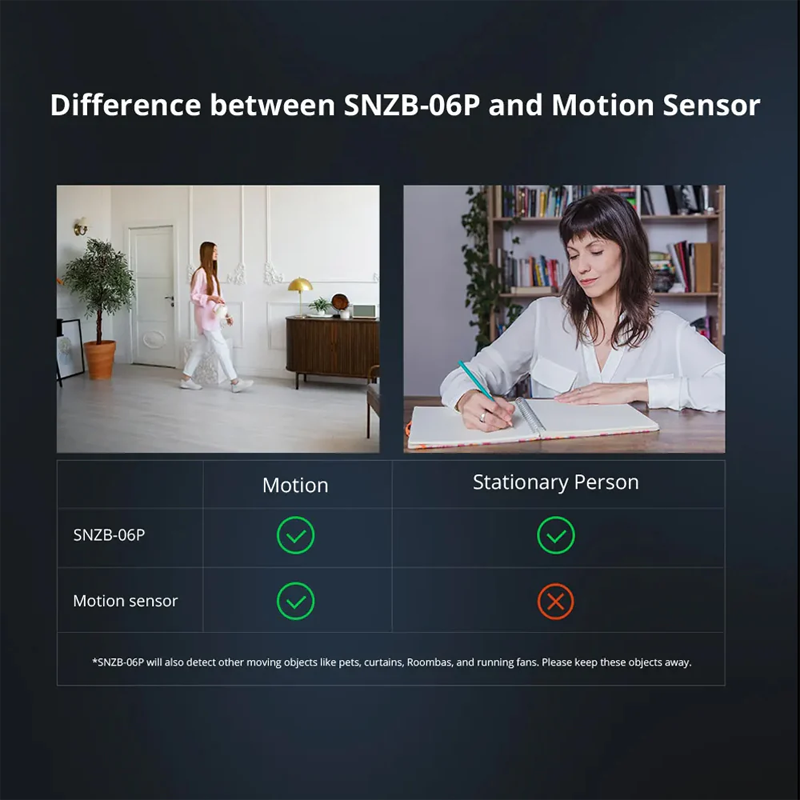

The Sonoff SNZB-06P is an advanced Zigbee 3.0 human presence sensor that utilizes 5.8GHz microwave radar technology to detect both movement and stationary presence, such as subtle motions like breathing or heartbeat. This capability ensures accurate occupancy detection, making it ideal for spaces where traditional PIR sensors may fall short.

Equipped with a built-in light sensor, the SNZB-06P intelligently activates connected lighting only when presence is detected in low-light conditions, enhancing energy efficiency. The sensor offers three adjustable sensitivity levels (2.5m, 3.5m, and 4m) to suit various room sizes and layouts.

Designed for seamless integration, the SNZB-06P is compatible with multiple Zigbee 3.0 hubs, including Sonoff NSPanel Pro, iHost, ZBBridge Pro, ZBDongle-E, and ZBDongle-P, as well as platforms like Home Assistant, SmartThings, Amazon Alexa (with built-in Zigbee hub), Google Home, and IFTTT. Its local smart scene capability ensures that automation functions continue even without an active internet connection.

The sensor operates as a Zigbee router, enhancing the stability and range of your Zigbee network. It requires a constant power supply via USB-C (5V/1A) and includes multiple installation options: magnetic base, 3M adhesive pad, or screw mounting, allowing for flexible placement in your home or office.

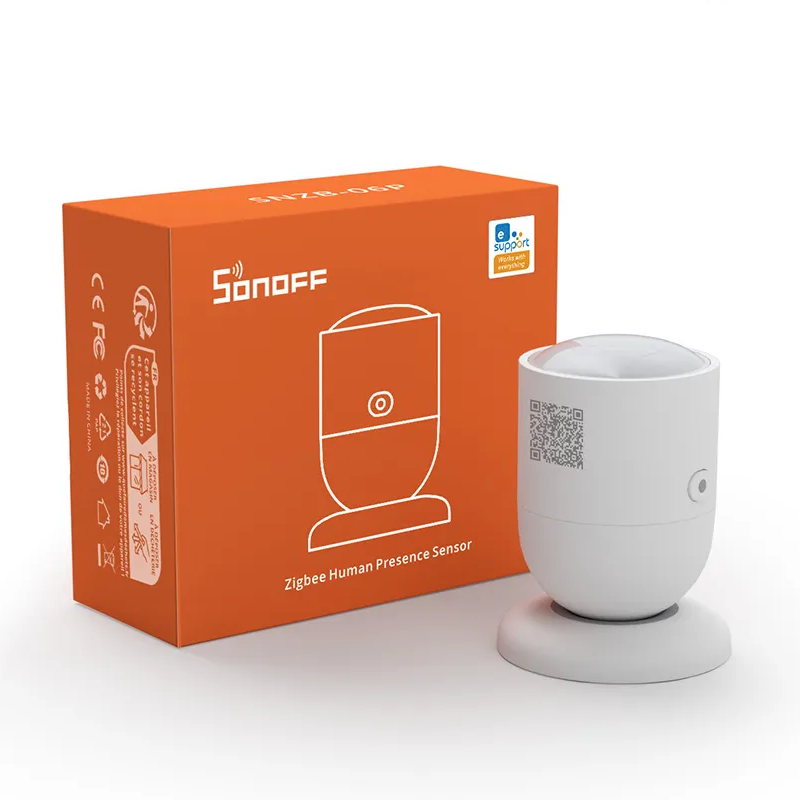

📦 What’s in the Box:

1x Sonoff SNZB-06P Zigbee Human Presence Sensor

1x USB-C Power Cable

1x Magnetic Base

1x 3M Adhesive Pad

1x Screw for Mounting

1x User Manual

📐 Key Specifications:

Model: SNZB-06P

Wireless Protocol: Zigbee 3.0 (IEEE 802.15.4)

Detection Technology: 5.8GHz Microwave Radar

Detection Range: Adjustable up to 4 meters

Detection Angle: 100°

Sensitivity Levels: Low (2.5m), Medium (3.5m), High (4m)

Light Sensor: Built-in (detects ambient light levels)

Power Supply: USB-C, 5V/1A

Operating Temperature: -10°C to 60°C

Operating Humidity: 0% to 90% RH (non-condensing)

Dimensions: 44.2 x 44.2 x 59 mm

Weight: Approximately 36 grams

Material: ABS + PC

📌 Key Features:

Advanced Presence Detection: Detects both movement and stationary presence, including subtle motions like breathing.

Intelligent Light Sensing: Activates lighting only when presence is detected in low-light conditions.

Adjustable Sensitivity: Three sensitivity levels to accommodate various room sizes and layouts.

Zigbee Router Functionality: Enhances the stability and range of your Zigbee network.

Local Smart Scenes: Automation functions continue even without internet connectivity.

Wide Compatibility: Integrates with multiple Zigbee hubs and smart home platforms.

Flexible Installation: Multiple mounting options for versatile placement.

📌 Common Use Cases:

Smart Lighting Automation: Automatically control lighting based on presence and ambient light levels.

Energy Efficiency: Reduce energy consumption by ensuring lights are only on when needed.

Enhanced Security: Monitor occupancy in sensitive areas for improved security.

Comfort in Living Spaces: Maintain desired lighting conditions in frequently used rooms
