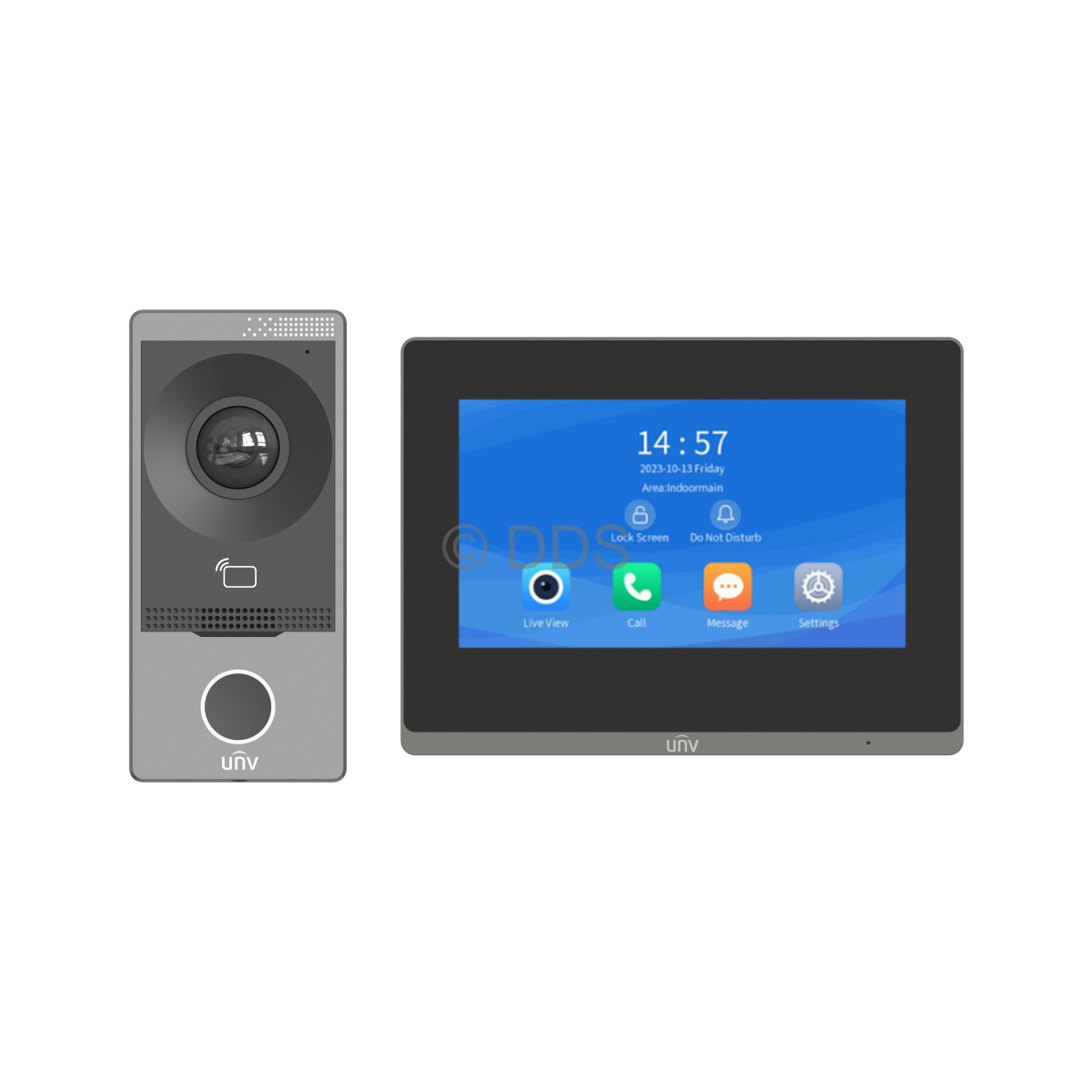

Smart Intercomm Kit

🔧 Key Features & Specifications

Indoor Station — OEI-372S-H-W

7-inch HD touchscreen (1024 × 600) with intuitive interface for calls, monitoring, and control

Supports DC 12 V or standard PoE (IEEE 802.3af) power

Built-in WiFi (2.4 GHz) + 100 Mbps network port

Audio features: noise suppression, echo cancellation, integrated mic & speaker

Interfaces: RS485, IO inputs/outputs, TF card slot for snapshots, network – supports up to 20 linked devices

Operating range: –10 °C to +55 °C, 10–90% humidity (non-condensing)

Compact design: 193 × 143 × 25 mm, weight ~360 g

Outdoor Villa Station — OEU-201B-HMK-W

2 MP wide-angle camera with IR illumination for night vision

Supports bidirectional audio (mic + speaker) for communication with indoor unit

Access control features: built-in MF card reader (13.56 MHz), mechanical call button, keypad (in some variants)

Supports up to 2,000 users and 10,000 card credentials

Outdoor rating: IP65 weatherproof and IK08 for vandal resistance

Power: DC 12 V (±25%) or PoE (IEEE 802.3af)

Dimensions: 78 × 170 × 34 mm, weight ~0.261 kg

✅ Benefits of This Kit

Seamless indoor/outdoor intercom communication

Integrated video, audio, and access control features in one package

Flexibility in power (PoE or DC) and network connectivity

Reliable performance in challenging weather and conditions

Support for expansion: connect additional indoor stations or cameras
