Ezviz 4mp Outdoor Triple Lense 12X Zoom Camera /H80f Multi
Ezviz 4mp Outdoor Triple Lense 12X Zoom Camera /H80f Multi
Couldn't load pickup availability

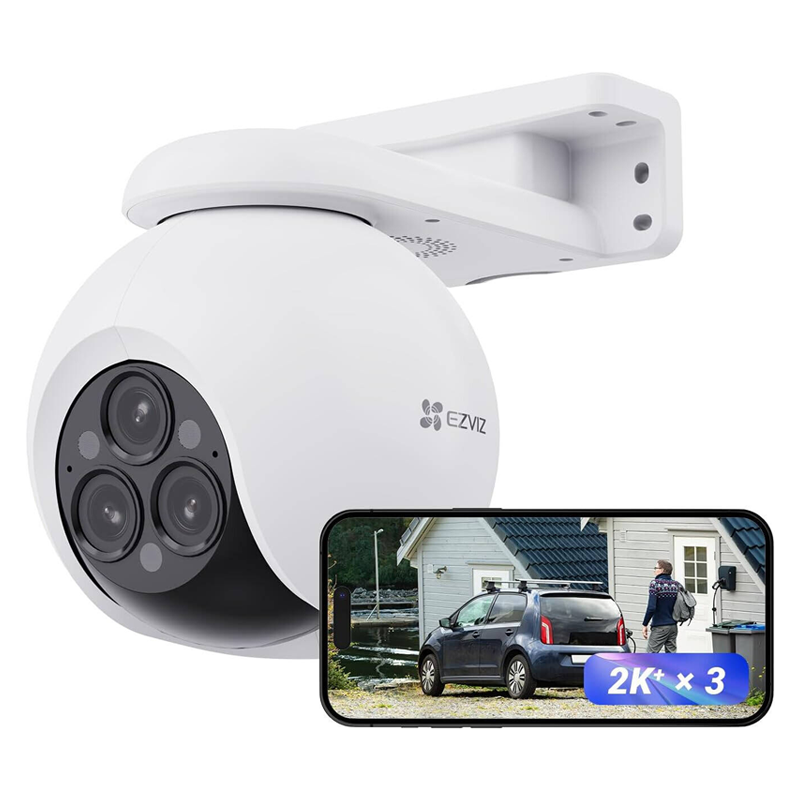

The H80f Multi 2K⁺ is a high-end triple-lens outdoor camera offering versatile surveillance. It combines several lenses of different focal lengths, pan/tilt motion, AI detection, and strong night vision in one sleek camera unit.
⚙️ Key Features
Triple 2K⁺ lenses let you capture wide area views and close-up details all at once.
12× mixed zoom capability plus auto-zoom tracking for both people and vehicles.
Supports double snapshots for detection events (human / vehicle) to give more information in alerts.
Two patrol modes + one-click return to preset directions and zoom ratios.
360° panoramic view with 340° horizontal pan and 70° tilt.
Color night vision (with built-in spotlights), black & white IR mode, or smart night mode that activates spotlights when motion is detected.
Active defense: siren & strobe light to ward off unwanted visitors.
IP67 weatherproof—built to work outdoors under harsh conditions.
Two-way audio for speaking and listening through the camera.
Supports large local storage (microSD up to 512 GB) plus optional cloud storage.
📋 Technical Specifications
| Spec | Detail |
|---|---|
| Model | CS-H80f-R100-8G444WKFL |
| Lenses / Focal lengths | Triple lenses: 2.8 mm, 6 mm, 12 mm (all F1.6) |
| Viewing Angles | 2.8 mm: ~110° diagonal / ~96° horizontal / ~54° vertical 6 mm: ~60° diagonal / ~52° horizontal / ~28° vertical 12 mm: ~29° diagonal / ~25° horizontal / ~14° vertical |
| Pan / Tilt Range | Pan: 340° Tilt: 70° |
| Minimum Illumination | ~0.05 Lux (F1.6, AGC ON); 0 Lux with IR |
| Night Vision Range | Up to ~30 meters |
| Video Resolution | Up to 2560 × 1440 (2K⁺) |
| Compression | H.265 / H.264 |
| WiFi | 2.4 GHz (802.11 b/g/n) |
| Wired Network | 1 × RJ45 (10/100 Mbps) |
| Detection / Smart Features | AI detection for human & vehicle, auto-zoom tracking, detection zones, double snapshots |
| Storage | microSD (max 512 GB) + cloud option |
| Power Supply | DC 12V / 1.5A |
| Max Power Consumption | ~18 W |
| Operating Environment | -30 °C to +50 °C, up to 95% humidity (non-condensing) |
| Weatherproof Rating | IP67 |
| Dimensions & Weight | 168 × 112 × 156 mm 575.7 g |
✅ What’s in the Box
H80f Multi camera unit
Waterproof kit & screw kit
Drill template for mounting
Power adapter
Quick Start Guide & regulatory / Customer Support cards
