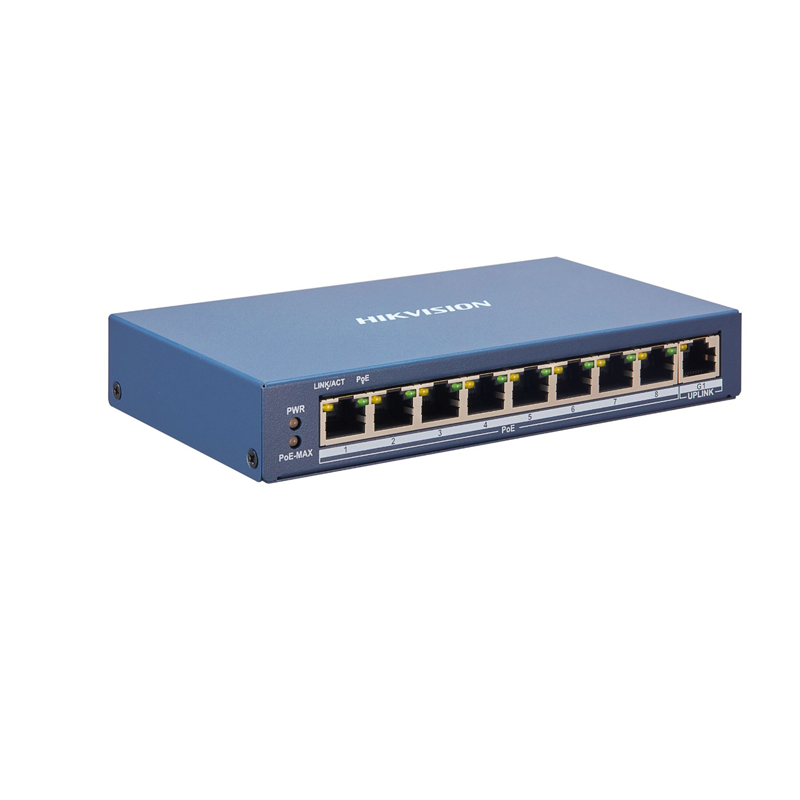

Hikvision DS-3E1309P-EI/M Smart PoE Switch

The Hikvision DS-3E1309P-EI/M is an 8-port smart PoE network switch designed for professional IP surveillance and network deployments that require reliable power over Ethernet and basic network intelligence. This model provides ample PoE power distribution to CCTV cameras and devices while supporting VLAN segmentation and network health monitoring. It features a compact metal housing and fan-less design, making it suitable for continuous operation in offices, stores, or residential security systems.

Its built-in PoE watchdog function automatically detects and restarts devices (like cameras) that stop responding, reducing service interruptions. The switch also supports extended PoE transmission up to 300 meters for compatible devices, offering flexibility for longer cable runs in larger installations.

Technical Specifications

🔹 Ports & Connectivity
✦ 8 × 10/100 Mbps PoE RJ45 ports
✦ 1 × Gigabit RJ45 uplink port
✦ Supports standard IP cameras, NVRs, and network endpoints

🔹 PoE Power Details
✦ IEEE 802.3af / 802.3at PoE standards
✦ Up to 30 W per PoE port
✦ Total PoE power budget: ~60 W (varies by market region)

🔹 Smart Network Functions
✦ VLAN (802.1Q) for network segmentation
✦ PoE Watchdog for automatic restart of unresponsive devices
✦ Loop prevention (STP/RSTP) for network stability
✦ Cable detection for fault identification
✦ Optional port isolation to improve security

🔹 Performance & Capacity
✦ Switching capacity ~5.6 Gbps
✦ Forwarding rate ~4.17 Mpps
✦ Internal cache ~4 Mbits
✦ MAC address table ~8 K entries

🔹 Protection & Reliability
✦ 6 kV surge protection for PoE ports
✦ Stable video-optimized forwarding
✦ Durable metal, fanless design

🔹 Physical & Environment
✦ Dimensions approx. 170 × 27.6 × 93.1 mm
✦ Fan-less quiet operation
✦ Operating temp: 0 °C to 40 °C
✦ Mounting: desktop or wall-mount

General Applications

☆ Multi-camera IP CCTV surveillance
☆ Small to medium offices
☆ Retail outlets and showrooms
☆ Warehouse or storage monitoring
☆ Residential buildings
☆ Network extensions for existing PoE systems

What’s in the Box

➤ Hikvision DS-3E1309P-EI/M Smart PoE Switch
➤ External power adapter
➤ Mounting accessories
➤ Quick installation guide
