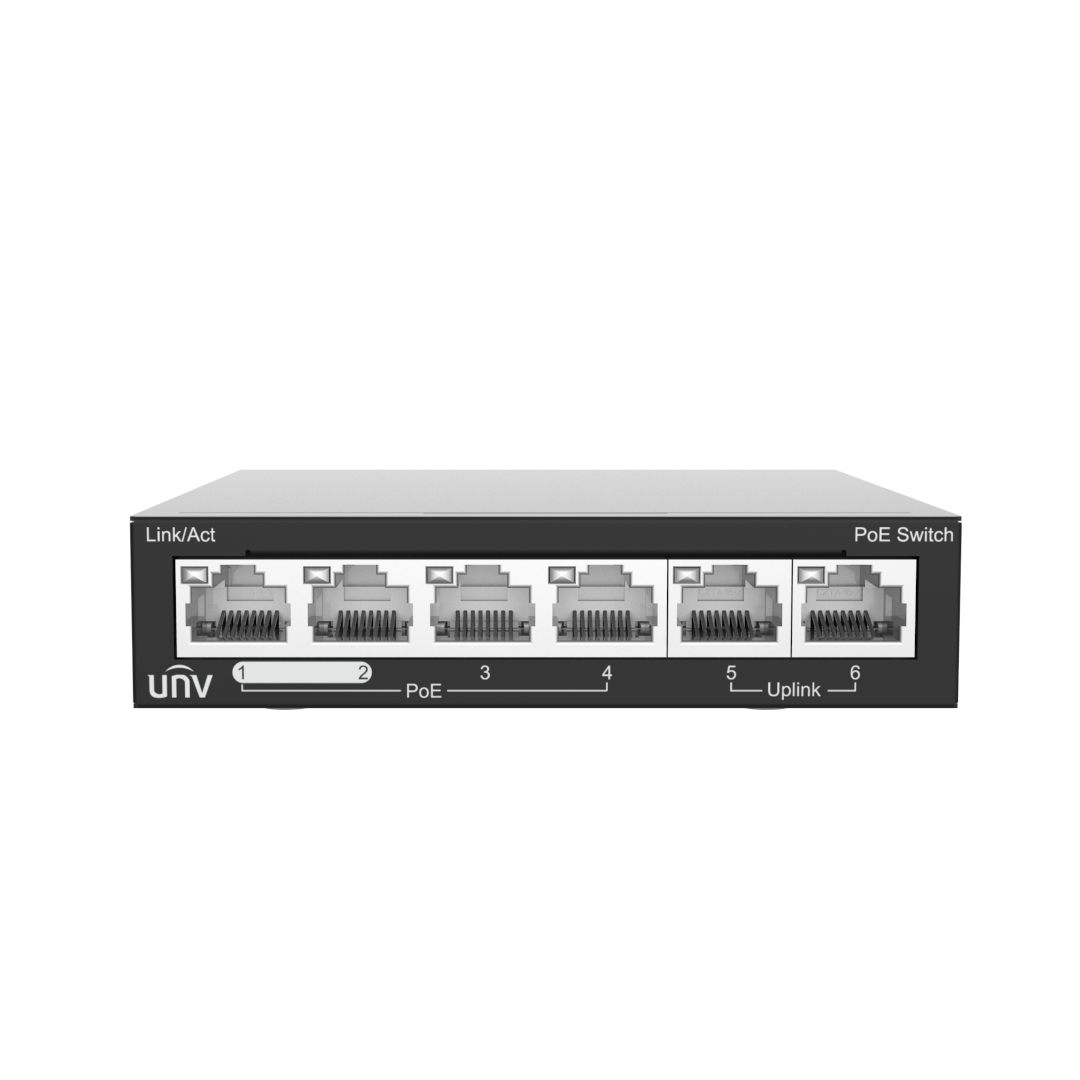

UniView NSW2020‑6T‑POE‑IN PoE Ethernet Switch

The UniView NSW2020‑6T‑POE‑IN is a compact, unmanaged PoE switch tailored for small to medium IP surveillance and network applications. It provides power over Ethernet (PoE) directly to devices such as IP cameras, access points, and VoIP devices, reducing the need for separate power supplies and simplifying installation. This model features a sturdy metal enclosure with fan-less design for silent operation and reliable long‑term performance. It supports multiple operating modes including normal, secure VLAN, and extended surveillance mode with long‑distance PoE transmission.

Ideal for budget‑friendly surveillance systems, the NSW2020‑6T‑POE‑IN strikes a balance between simplicity and essential functionality, offering stable data forwarding and intelligent PoE behavior in environments with multiple connected devices.

Technical Specifications

🔹 Ports & Connectivity
✦ 6 × 10/100 Mbps RJ45 ports
✦ Includes 4 PoE‑capable ports + 2 uplink ports
✦ Designed for IP cameras, Wi‑Fi APs, VoIP devices, and basic network expansions

🔹 PoE Power Features
✦ Supports IEEE 802.3af / IEEE 802.3at PoE standards
✦ Up to 30 W per PoE port
✦ Total PoE budget ~60 W for all PoE ports

🔹 Performance & Capacity
✦ Switching capacity ~1.2 Gbps
✦ Forwarding performance ~0.90 Mpps
✦ Packet buffer ~448 Kbit
✦ MAC address table ~1 K entries

🔹 Operating Modes
✦ Default (Normal Mode): All ports can communicate freely
✦ VLAN (Secure Mode): PoE downlink only talks to uplink ports
✦ EXTEND (Surveillance Mode): Up to 250 m PoE transmission for long‑distance camera deployment

🔹 Protection & Reliability
✦ Solid metal housing – durable, robust build
✦ Fanless design – silent and low‑maintenance
✦ Auto‑negotiation and Auto MDI/MDIX support

🔹 Power & Environment
✦ External DC power (48/51 V) via included adapter (AC 100‑240 V)
✦ Operating temp: 0 °C – 40 °C
✦ Operating humidity: 10 % – 90 % non‑condensing

General Applications

◉ Small IP CCTV surveillance networks
◉ Small offices or retail shops
◉ Home and residential security systems
◉ Powering PoE wireless access points
◉ VoIP and basic network device power distribution

What’s in the Box

▸ UniView NSW2020‑6T‑POE‑IN PoE switch
▸ Power adapter (48/51 V DC)
▸ User manual / Quick start guide
▸ Mounting accessories (if provided by vendor)
