6 Port POE Switch | GrandSecu KU-9006N

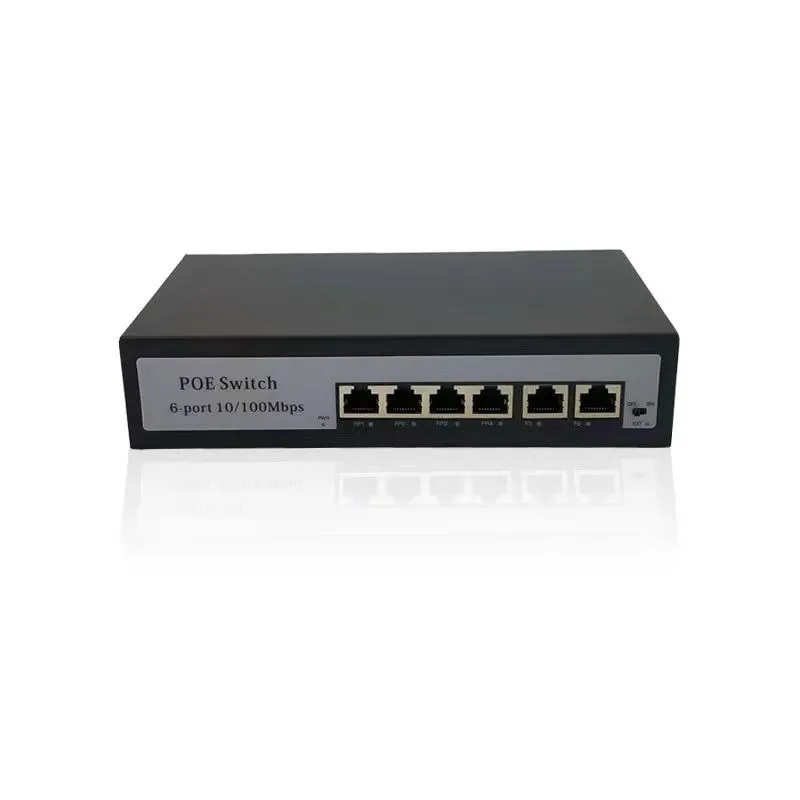

Grandsecu KU‑9006N PoE Ethernet Switch

The Grandsecu KU‑9006N is a compact and economical unmanaged PoE network switch designed for simple deployment of IP devices like surveillance cameras, wireless access points, and VoIP phones without needing separate power outlets. It combines data transmission and power delivery over a single Ethernet cable for up to four PoE devices, reducing installation complexity and cable clutter—ideal for small offices and home networks.

This model offers reliable performance in a silent, fan‑free metal housing and supports both IEEE PoE standards to ensure compatibility with a range of PoE‑enabled devices. Its straightforward plug‑and‑play setup makes it a practical choice for budget‑friendly network expansion and surveillance installations where advanced management features aren’t necessary.

Technical Specifications

◆ Ports & Connectivity
▸ 4 × 10/100 Mbps PoE RJ45 ports (Data + Power)
▸ 2 × 10/100 Mbps non‑PoE RJ45 uplink ports
▸ Store‑and‑forward switching architecture
▸ MAC Address Table: ~1 K entries
▸ Backplane bandwidth: ~1.2 Gbps
▸ Supports 10BASE‑T and 100BASE‑TX twisted‑pair Ethernet cabling

⚡ PoE Power Capabilities
▸ Compliant with IEEE 802.3af & IEEE 802.3at standards
▸ Up to 30 W per PoE port
▸ Total PoE power budget: ~75 W
▸ Default end‑span PoE delivery with optional mid‑span configuration

📊 Performance & Compatibility
▸ Forwarding method: Store and forward
▸ Supports auto‑MDI/MDIX
▸ LED indicators for Power and Link/Activity status
▸ Works with a wide range of PoE IP cameras, APs, and devices

🛡️ Environmental & Power Specs
▸ AC Input: 100‑240 V, 50‑60 Hz
▸ Operating temperature: ‑20 °C to 55 °C
▸ Operating humidity: 10 % – 90 % non‑condensing
▸ Storage temp: ‑40 °C to 75 °C
▸ Certifications: CE, FCC, VCCI Class B standards

General Applications

◉ Small IP CCTV surveillance systems
◉ Homes and residential network setups
◉ Small business offices
◉ PoE wireless access point powering
◉ VoIP and networked telephony devices
◉ Any basic PoE network deployment needing simple plug‑and‑play

What’s in the Box

▸ Grandsecu KU‑9006N PoE Ethernet Switch
▸ External AC Power Adapter
▸ Quick Start Guide / User Manual
▸ Mounting Accessories (if included)
