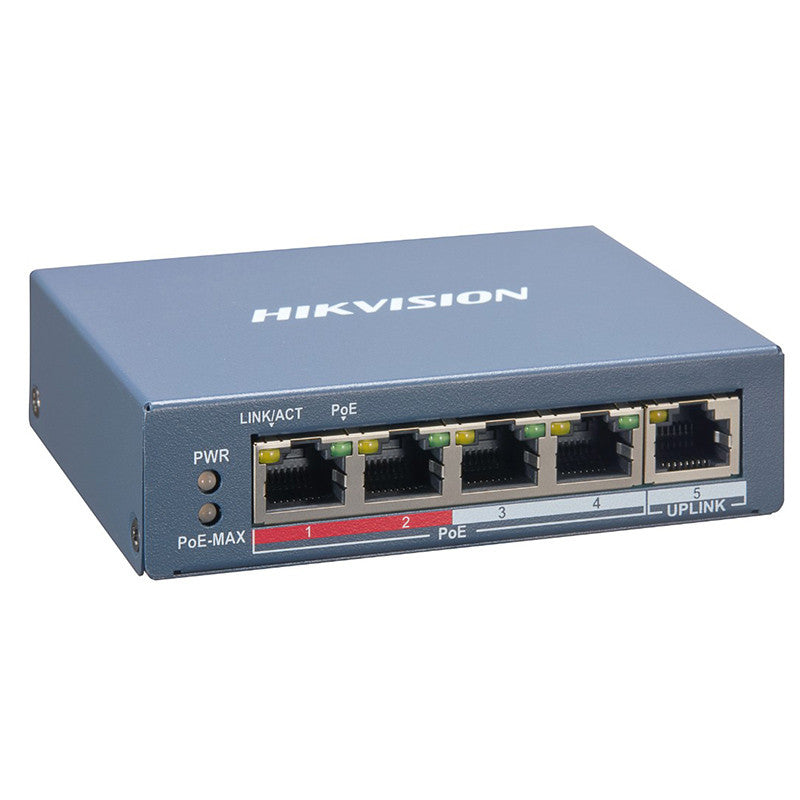

Hikvision DS-3E1105P-EI/M Smart PoE Switch

The Hikvision DS-3E1105P-EI/M is a smart PoE network switch engineered for reliable and efficient IP surveillance systems. It provides both power and data transmission through a single Ethernet cable, significantly simplifying camera installation and reducing overall wiring costs.

Designed with intelligent PoE management, this switch actively monitors connected devices and automatically restarts any unresponsive camera, ensuring continuous video recording with minimal downtime. Its compact metal enclosure and fanless architecture make it ideal for quiet environments that require long-term stability and durability.

Optimized for video data transmission, the DS-3E1105P-EI/M delivers stable performance even under continuous load, making it a dependable choice for professional security deployments.

Technical Specifications

⬤ Ports & Connectivity
▣ 4 × 10/100 Mbps PoE RJ45 ports
▣ 1 × 10/100 Mbps RJ45 uplink port
▣ Supports IP cameras, NVRs, and network expansion

⬤ PoE Performance
▣ IEEE 802.3af / 802.3at compliant
▣ Up to 30W power output per PoE port
▣ Total PoE power budget up to 45W
▣ Long-range PoE transmission up to 300 m in extend mode

⬤ Smart & Network Functions
▣ Intelligent PoE Watchdog auto-recovery
▣ VLAN traffic isolation for improved security
▣ Network loop prevention
▣ Cable fault detection
▣ Video-optimized data handling

⬤ Performance & Protection
▣ Switching capacity up to 1 Gbps
▣ 6 kV surge protection
▣ Stable, uninterrupted video transmission

⬤ Physical & Environment
▣ Industrial metal housing
▣ Fanless and silent operation
▣ Desktop or wall-mount installation
▣ Operating temperature: 0°C to 40°C
▣ Humidity: 5% – 95% non-condensing

General Applications

◉ IP CCTV surveillance systems
◉ Homes and residential buildings
◉ Retail stores and shopping centers
◉ Offices and commercial spaces
◉ Small warehouses and storage areas
◉ Educational facilities

What’s in the Box

◈ Hikvision DS-3E1105P-EI/M Smart PoE Switch
◈ Power adapter
◈ Mounting accessories
◈ Quick installation guide
