18 Port POE Switch | Hikvision DS-3E1318P-EI/M

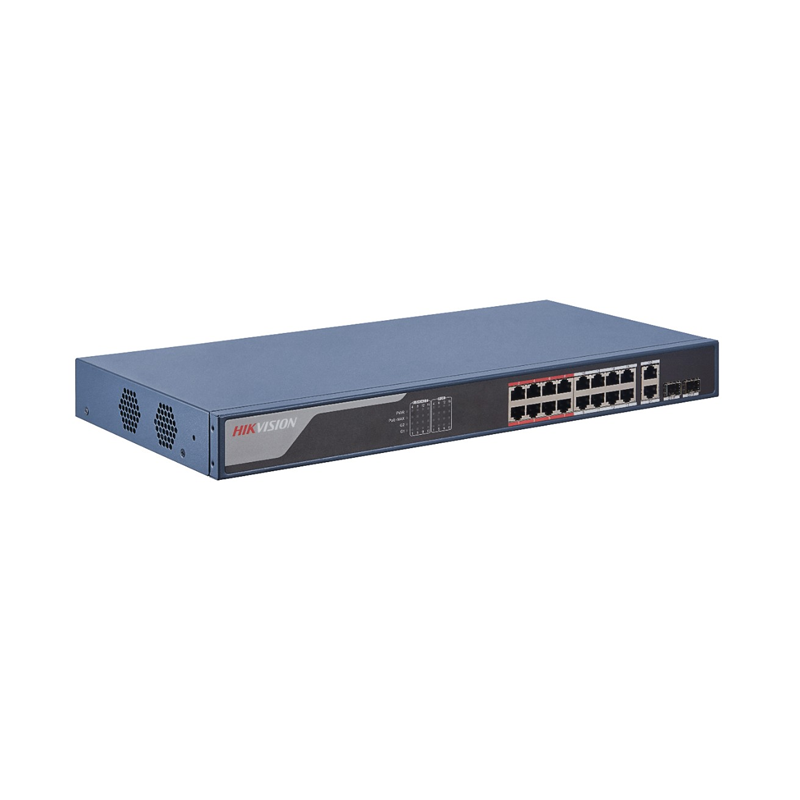

Hikvision DS‑3E1318P‑EI/M Smart PoE Switch

The Hikvision DS‑3E1318P‑EI/M is a robust smart managed PoE switch ideal for larger CCTV and network installations where power delivery over Ethernet and intelligent network management are essential. Featuring 16 PoE output ports and additional uplink ports, this switch enables centralized power distribution and network connectivity for multiple IP cameras, access points, and security devices.

Designed with a metal housing and fan‑less architecture, this switch offers durability and silent operation, making it suitable for rack‑mount or wall‑mount use in professional environments. It supports extended PoE transmission up to 300 meters, advanced network protections, and smart features that simplify surveillance deployments and network stability.

Technical Specifications

⬤ Ports & Connectivity
✦ 16 × 10/100 Mbps PoE RJ45 ports for power & data delivery
✦ 1 × Gigabit RJ45 uplink port
✦ 1 × Gigabit combo uplink (RJ45/SFP)
✦ Suitable for IP cameras, NVRs, Wi‑Fi APs and more

⬤ PoE Power & Performance
✦ Supports IEEE 802.3af & IEEE 802.3at PoE standards
✦ Up to 30 W per PoE port
✦ Total PoE power budget ~130 W

⬤ Network & Smart Functions
✦ PoE Watchdog auto‑restarts unresponsive devices
✦ VLAN segmentation (802.1Q)
✦ STP/RSTP loop prevention for network reliability
✦ Cable fault detection
✦ Port isolation for improved security
✦ VIP port prioritization for bandwidth allocation

⬤ Performance & Capacity
✦ Switching capacity up to ~9.2 Gbps total
✦ Packet forwarding rate ~6.84 Mpps
✦ MAC address table ~16 K entries
✦ Internal cache ~4 Mbits

⬤ Protection & Reliability
✦ 6 kV surge protection on PoE ports
✦ Durable metal body, rack‑ready design
✦ Quiet fan‑less operation

⬤ Physical & Environmental
✦ Rack installable with mounting ears
✦ Operating Temp: 0 °C – 45 °C
✦ Storage Temp: ‑40 °C – 85 °C
✦ Humidity: 5 % – 95 % (no condensation)
✦ Power supply: 100‑240 V AC

General Applications

◉ Multi‑camera IP CCTV systems
◉ Medium to large offices or buildings
◉ Industrial and commercial surveillance networks
◉ Network expansion for wireless access points
◉ Retail stores, warehouses, schools, hotels

What’s in the Box

▸ Hikvision DS‑3E1318P‑EI/M Smart PoE Switch
▸ Power cord / adapter
▸ Rack mount brackets & screws
▸ Quick start guide / documentation
