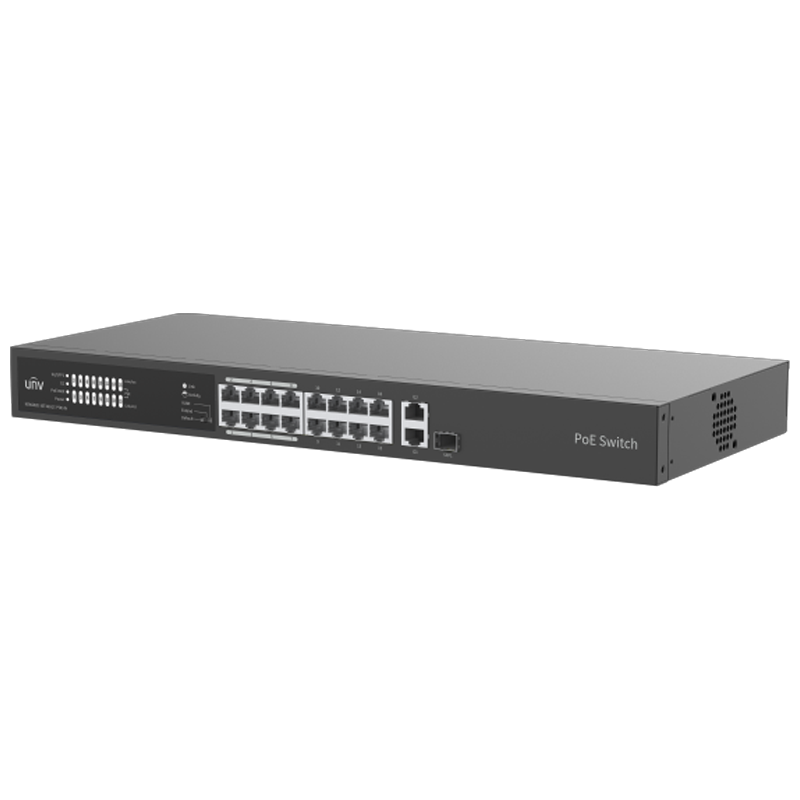

Uniview NSW2020‑16T1GT1GC‑POE‑IN Smart PoE Switch

The Uniview NSW2020‑16T1GT1GC‑POE‑IN is a high‑capacity unmanaged PoE Ethernet switch engineered for large IP surveillance systems and multiservice network environments. It supports 16 PoE‑enabled Ethernet ports alongside high‑speed uplink connections, delivering both reliable power and data transmission for cameras, access points, VoIP devices, and other PoE equipment. This switch combines robust PoE delivery with flexible network modes to optimize traffic control and connection stability across diverse installations.

Built with a metal chassis and advanced cooling, the NSW2020‑16T1GT1GC‑POE‑IN offers long‑term reliability and continuous operation in professional settings. Intelligent features such as extended PoE range and secure VLAN mode make it ideal for CCTV, enterprise networks, and multi‑device deployments.

Technical Specifications

⬤ Ports & Connectivity
▸ 16 × 10/100 Mbps PoE+ RJ45 ports for data + power
▸ 1 × 1 Gbps RJ45 uplink port
▸ 1 × 1 Gbps combo uplink port (RJ45/SFP)
▸ Supports IP cameras, NVRs, wireless APs, VoIP phones and more

⬤ PoE Power Delivery
▸ Complies with IEEE 802.3af & IEEE 802.3at PoE+ standards
▸ Up to 30 W per PoE port
▸ Total PoE power budget up to ~225 W across all PoE ports

⬤ Performance & Capacity
▸ Switching capacity ~7.2 Gbps
▸ Forwarding performance ~5.36 Mpps
▸ Packet buffer ~4 Mbit
▸ MAC address table ~16 K entries

⬤ Network Modes & Smart Functions
▸ Default (Normal) – Standard communication among all ports
▸ VLAN (Secure) – Downlink ports communicate only with uplinks
▸ EXTEND (Surveillance) – PoE transmission extended up to ~250 m
▸ Port traffic control & buffer optimization for stability

⬤ Protection & Hardware
▸ All‑metal housing for durability
▸ Single fan cooling for stable thermal management
▸ Auto‑MDI/MDIX support
▸ LED indicators for PoE, link, power and activity

⬤ Physical & Environment
▸ Dimensions ~440 × 195 × 44 mm
▸ Weight ~2.12 kg
▸ Operating temp: 0 °C – 40 °C
▸ Operating humidity: 10 % – 90 % non‑condensing

General Applications

◉ Large IP CCTV surveillance systems
◉ Enterprise and commercial network deployments
◉ Offices, retail environments, hotels and campuses
◉ Powering PoE access points and security devices
◉ VoIP and connected IoT devices
◉ Extended network reach with surveillance mode

What’s in the Box

▸ Uniview NSW2020‑16T1GT1GC‑POE‑IN PoE Ethernet Switch
▸ Power adapter (AC 100‑240 V)
▸ Quick start guide / user manual
▸ Mounting accessories (if included by vendor)
