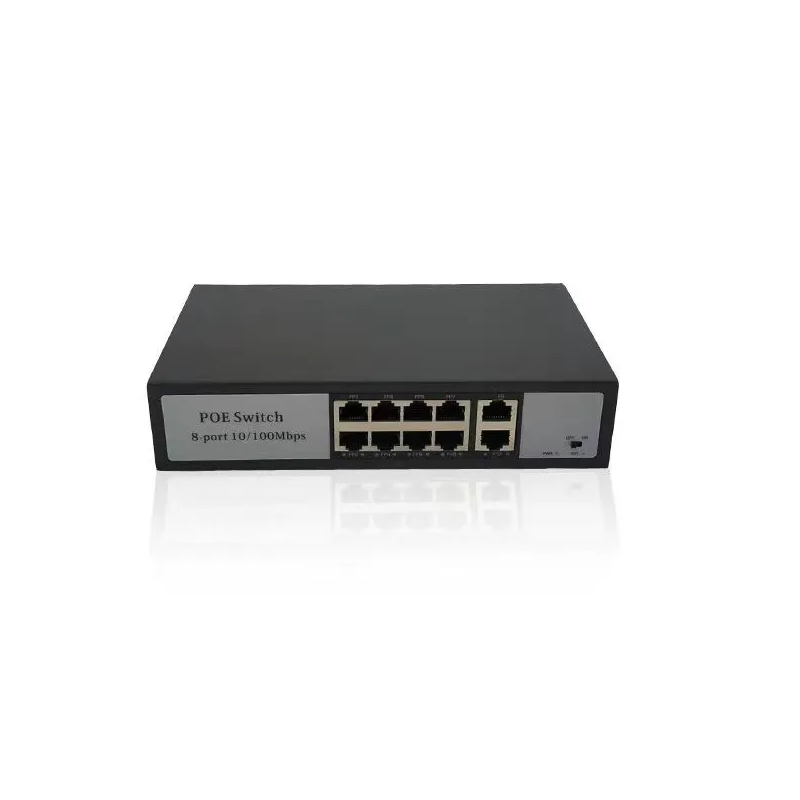

Grandsecu KU‑9010N PoE Ethernet Switch

The Grandsecu KU‑9010N is a reliable unmanaged PoE network switch designed to deliver both data and power over Ethernet for surveillance cameras, access points, and other PoE devices. With 8 high‑power PoE ports and 2 additional Ethernet uplink ports, this switch simplifies deployments in small to medium CCTV and network infrastructures.

Built with a sturdy metal housing and efficient power distribution, the KU‑9010N ensures stable performance even in extended installations. It supports long‑distance PoE transmission up to 250 meters with the appropriate settings, making it suitable for remote camera placements and reduced cabling costs. This switch adheres to industry‑standard protocols and offers flexible PoE power options to support a range of network devices. grandsecu.com.cn

Technical Specifications

⚙️ Ports & Connectivity
◉ 8 × 10/100 Mbps PoE RJ45 ports (Data + Power)
◉ 2 × 10/100 Mbps RJ45 network ports (Uplink)
◉ Designed for IP cameras, APs, VoIP devices and basic network setups grandsecu.com.cn

⚡ PoE Power Delivery
◉ Compliant with IEEE 802.3af & IEEE 802.3at PoE standards
◉ Power per port up to 30 W (max)
◉ Total PoE power budget up to 120 W for all PoE ports
◉ Supports end‑spanning PoE delivery (optional mid‑span mode) grandsecu.com.cn

📊 Performance & Capacity
◉ Backplane bandwidth ~ 2 Gbps
◉ Forwarding method: Store & Forward
◉ MAC address table ~ 2 K entries
◉ IEEE 802.3i, IEEE 802.3u, IEEE 802.3x Flow Control support grandsecu.com.cn

📦 Transmission & Distance
◉ Long‑distance PoE extension up to 250 m (with proper configuration)
◉ Auto Uplink™ support for cable detection and link negotiation grandsecu.com.cn

🛡️ Protection & Reliability
◉ Solid metal enclosure for durability
◉ Operating temperature: ‑20 °C to 55 °C
◉ Storage temperature: ‑40 °C to 75 °C
◉ CE, FCC, VCCI, CISPR emissions compliance
◉ LED indicators for power, network link/activity status grandsecu.com.cn

🔌 Power & Environment
◉ AC input: 100‑240 V, 50‑60 Hz
◉ Total device power capacity: 120 W
◉ Fanless, silent operation grandsecu.com.cn

General Applications

◉ Multi‑camera IP CCTV surveillance systems
◉ Small to medium business network environments
◉ Powering PoE Wi‑Fi access points
◉ VoIP and networked telephony systems
◉ Office, retail, and residential network deployments

What’s in the Box

▸ Grandsecu KU‑9010N PoE Ethernet Switch
▸ External AC power cord
▸ Quick Start Guide / User Manual
▸ Mounting accessories (if included)
